Brackets



FEATURES:

graphic_bluebar

The 4B's Bracket can be placed either vertically or horizontally for securing tank holders.  The B-101 bracket will secure 1 to 3 tank holders, and with two B-102 extenders it will extend to 4 feet of securing area to add more tank holders.



Brackets may be used consecutively to accommodate any number of cylinders.


STANDARD ON ALL BRACKETS:

graphic_bluebar


» 12 Gauge Carbon Steel
» Clear-Zinc Plated
» Form Fitting Rubber Gaskets
» Hinged for Easy Access
» Simple Wing Nut and Bolt Assembly

B-101
-Size: 19 inches
-Secures 1 to 3 cylinder tanks
-For use in industrial and commercial applications
-Can be used vertically or horizontally to secure cylinder
   tanks
graphic_bracket-101

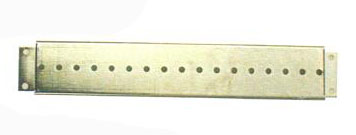

B-102

-Size: 17-3/4 inches
-Attached to B-101, extends tank holding area
-Using 2 B-102 extensions would create 4 feet of area for
    securing cylinders
-Safely secures cylinder to wall
-For use in industrial and commercial applications
graphic_bracket-102

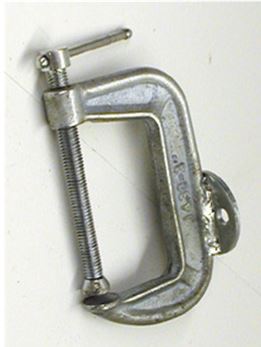

B-103

-Bench Bracket
-Fits all benches
-For use in industrial and commercial applications

B-103 Bracket


B-104-6

-Twin bracket holder
-Fits cylinder tanks with a diameter of 5-1/4 to
  7-1/4 inches
-Safely secures cylinder to wall
-For use in industrial and commercial applications

B-104-6 Bracket


B-104-10
-Twin bracket holder
-Fits cylinder tanks with a diameter of 7-1/4 to
   10-3/4 inches
-Safely secures cylinder to wall
-For use in industrial and commercial applications
B-104-10 Bracket

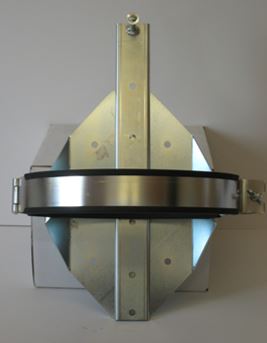

FLH-201
-Fits cylinder tanks with a diameter of 12-13 inches
-20 lb. propane tanks
-Acetylene tank sizes: WK, L, 5, 6
-Liquid Receivers
-100 lb. anhydrous ammonia
-33 lb. forklift tanks
-Safely secures cylinder to wall
-For use in industrial and commercial applications
FLH-201 Bracket
